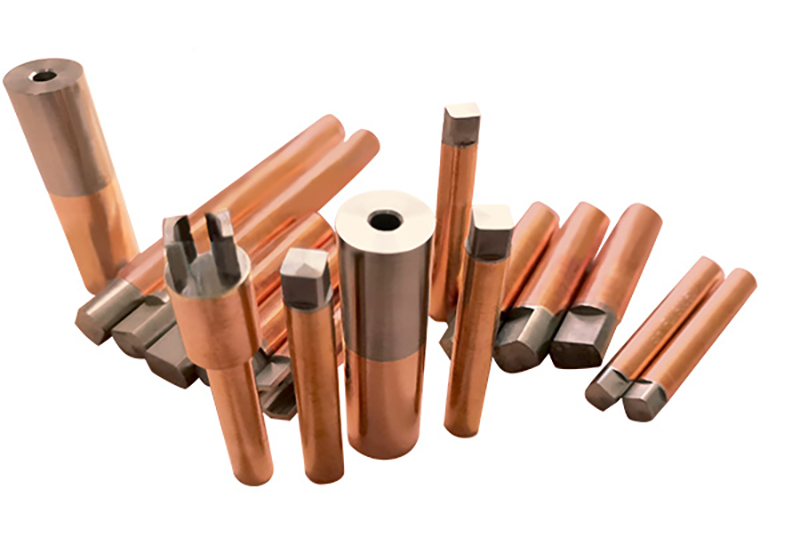

NDB Tungsten Molybdenum Resistance Spot Welding Electrode
NDB (non-defective bonding) electrodes are created using a high-vacuum bonding technique that forms a seamless joint—no filler materials, no voids, no weak points. Using copper, CuCrZr as shaft, tungsten, molybdenum, WLa, TZM etc as tips. This method produces a highly conductive, ultra-strong bond with tensile strength > 120MPa.
Advanced Micro Resistance Spot Welding Electrodes
NDB Tungsten Molybdenum Resistance Spot Welding Electrode
Tungsten & Molybdenum Base
Purity 99.95% Tungsten & Molybdenum Base

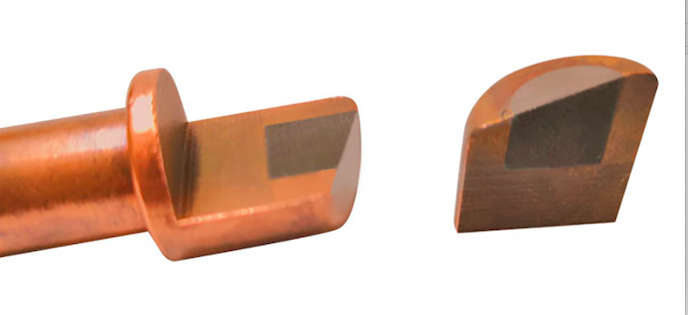

Tungsten Back-cast Copper Base
The Game-Changer in Tungsten Molybdenum Resistance Welding Electrode
“Experience the pinnacle of welding precision with our tungsten or molybdenum micro-resistance spot welding electrodes. Combining the strength of tungsten and molybdenum with innovative NDB bonding technology, these electrodes deliver:
- Exceptional durability to reduce wear and tear
- Consistent, precise welds on ultra-thin materials (.0005”–.005” thickness)
- Superior heat dissipation and conductivity for challenging welding environments
Whether in automotive, electronics, or battery production, our electrodes ensure performance you can rely on.
Key Features & Customer Benefits of W Mo Resistance Spot Welding Electrode
Why Our Tungsten Molybdenum Electrodes Stand Out？
Seamless NDB Bonding
No additional welding materials are required. Tungsten, Molybdenum and realted alloy tips are seamlessly fused into Copper and related alloy with no internal pores. With a bonding strength above 130 MPa, the connection ensures the resistance spot welding electrode have excellent conductivity and thermal performance, significantly extending service life and reducing energy loss.
High-Quality Materials & Stability
Electrodes are manufactured using carefully selected, high-quality raw materials with excellent physical and chemical stability. With the addition of rare elements, the electrodes achieve enhanced thermal stability, outstanding resistance to deformation, hardness loss, and oxidation, ensuring long-lasting reliability without cracking or delamination.
Superior Structural Integrity
Each electrode undergoes thorough densification treatment, resulting in high density and uniform internal structure.
Wide Material Compatibility
Ideal for tungsten, molybdenum, stainless steel, and alloys like Inconel and nichrome.
Extensive Industry Expertise
With years of experience in resistance welding electrode production, we provide customized design improvements tailored to customer needs and real-world applications.
Advanced Densification Process
Electrodes feature a high-density, uniform internal structure, reducing risks of cracks or defects.
Tungsten Molybdenum Resistance Welding Electrodes Materials Multiple Choice
Tungsten and molybdenum tips: Withstand extreme temperatures, maintain shape, and prevent deformation.
- WL10 (1% Lanthanated Tungsten alloy)
- WCu (Tungsten-copper alloy)
- TZM (Titanium Zirconium Molybdenum)
- Pure Tungsten (99.95%)
- Pure Molybdenum (99.95%)
Copper bases: Enhance heat conductivity and durability.
- CuCrZr (chromium zirconium copper
- OFC (oxygen-free copper)
- Cu (pure copper)
Tungsten Molybdenum Resistance Welding Electrode Application

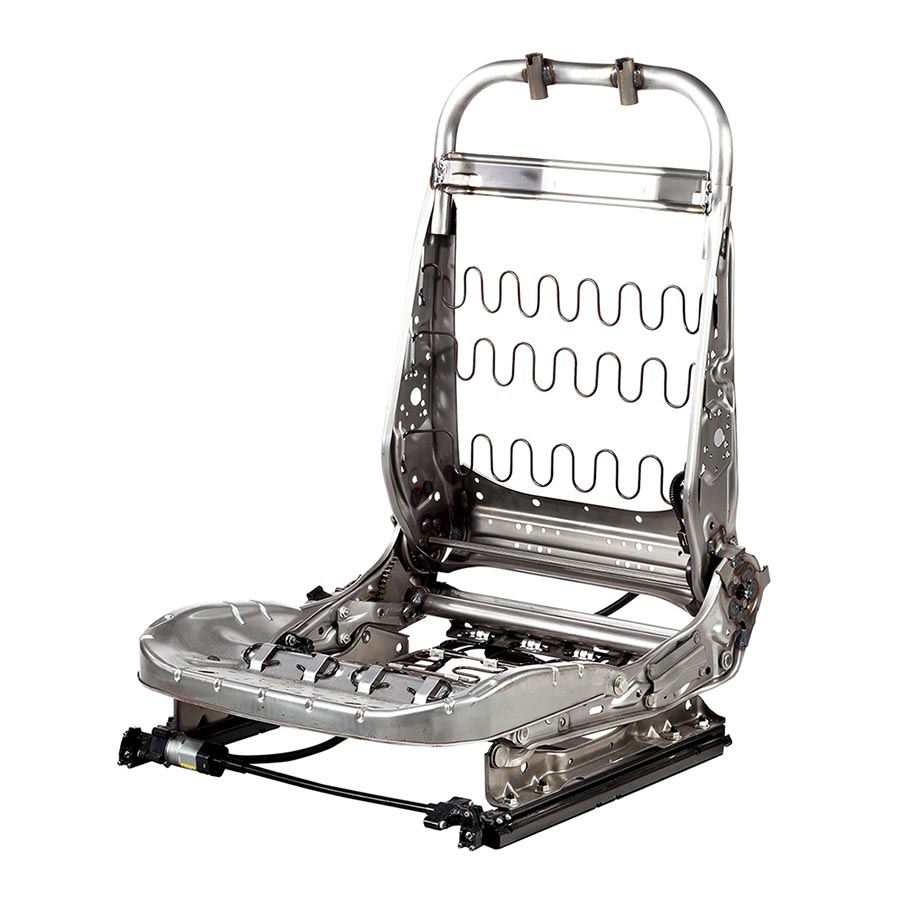

Automotive Manufacturing
EV battery tabs, lightweight components, and wiring harnesses.
Electronics Production
Circuit boards, sensors, and connectors.

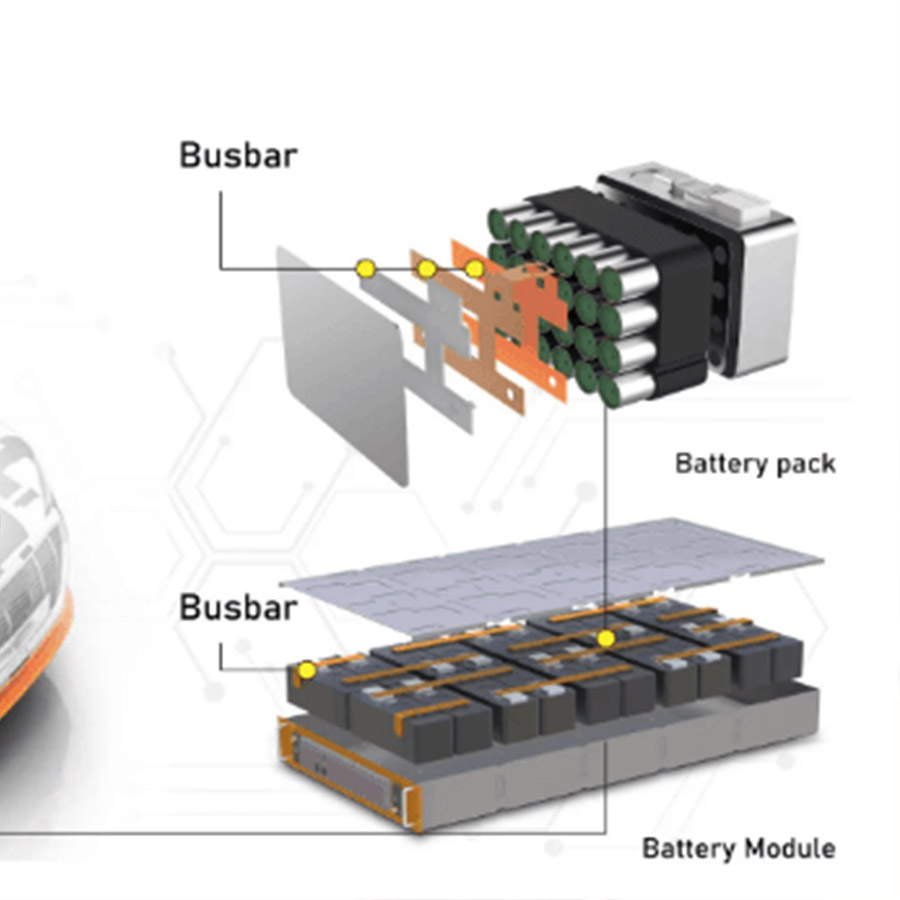

Battery Assembly
High-capacity lithium-ion battery tabs and connections.
Medical Device Welding
Micro-dissection tools and minimally invasive equipment.

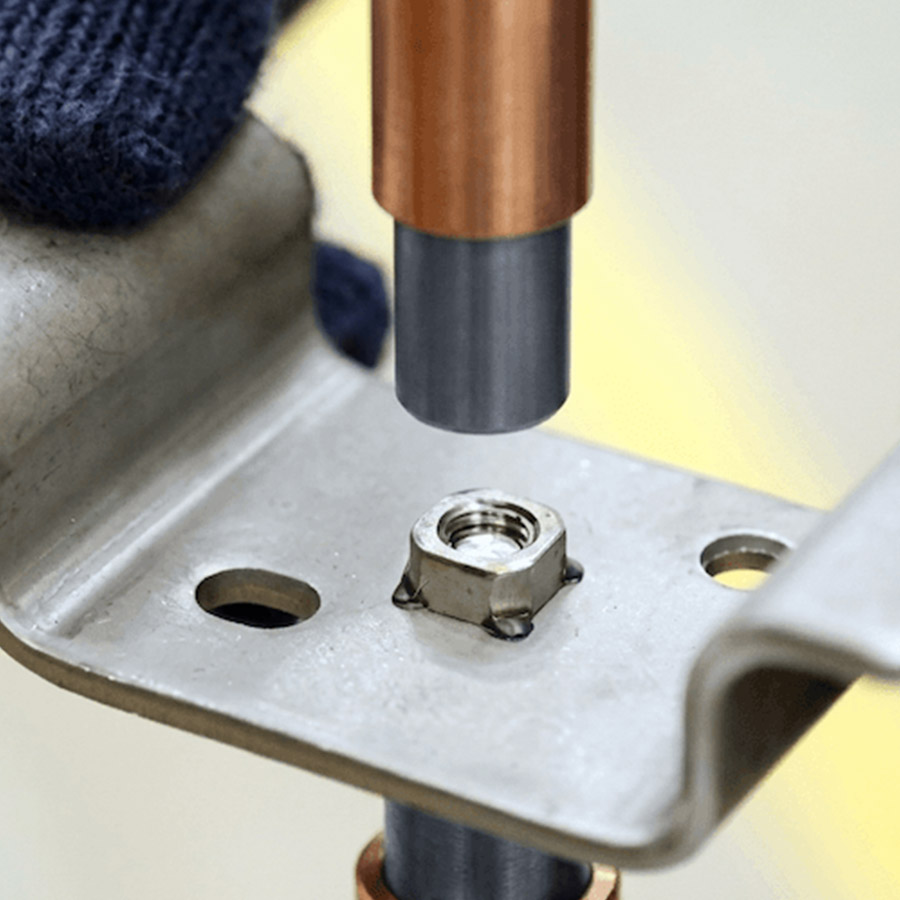

Scales of Welding
Our electrodes cater to a broad range of spot welding applications
- Large-Scale Welding: Common in automotive industries for welding steel and stainless steel in thicknesses from .016” to .062”.
- Small-Scale Welding: Ideal for advanced alloys such as molybdenum, tungsten, and nichrome in thicknesses of .005” to .020”.
- Micro-Scale Welding: Perfect for high-tech industries like electronics, medical devices, and telecommunications, handling ultra-thin materials from .0005” to .005”.”
Compatible Resistance Spot Welding Systems
Our electrodes are compatible with a wide range of micro resistance welding systems, ensuring precision and reliability:
- Transistor Welders: Optimal for super-fine wires and sensitive micro components, such as Avio MCW-700 and MCW-750 systems.
- Capacitor Discharge Welders: Suitable for less sensitive micro welding tasks.
- Inverter Welders: Reliable for moderate precision needs.
Compatible with brands including Palomar, Hughes, Unitek, Avio, MacGregor, and Sunstone Engineering.”
More about YOLO
Raw materials & Machining Cost
Yolo, as a professional manufacturer of tungsten-base resistance welding electrode, you could save procurement costs from the source. Because we start production from raw material APT powder and meet Japanese and German market standards. But you will benefit a lot from the location of the factory, China.
Delivery on time
Complete order management system and rich production experience enables customer orders in an orderly manner. Our annual customer complaint rate is less than 1%.
Top Grade Tungsten Molybdenum Resistance Welding Electrode
NDB Technology at Factory Direct Price
Get premium NDB electrodes with tungsten, molybdenum, WLa, and TZM alloy tips insert Cu electrode—directly from our factory in China. We offer OEM/ODM support, custom designs, and competitive pricing to meet your production needs.
