Molybdenum & TZM Furnace Components
Luoyang, China – Optimal Raw Material Access | Price Lock Available
Strong Metal • Density ≥10.2g/cm³ • 20-30% Longer Hot-Zone Life
Why Luoyang Furnace Components?
Mo Capital Advantage
Located in Luoyang – China’s molybdenum production hub with optimal raw material access and cost stability during global price volatility.
Price Lock Guarantee
Raw material pass-through plus fixed processing fees for the contract duration. Split delivery eliminates price risk on large orders.
Components Specialists
100% furnace components focus matching Elmet and Stanford specifications with flexible MOQ and rapid custom machining.

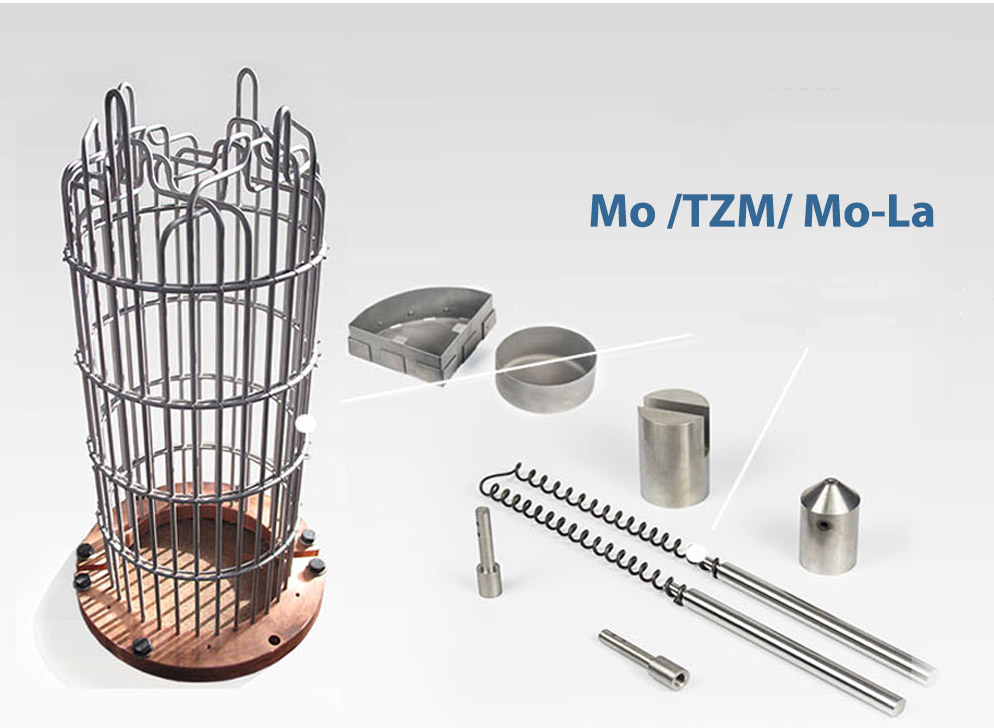

Complete Product Range
Matching industry-leading specifications for all furnace types
Crucibles & Boats
- Spun pressed and sintered machined
- Sapphire KY HEM crystal growth
- Vacuum brazing carriers
- Precision trays and pallets
Heating Elements
- Wire rod mesh and ribbon heaters
- 2000°C+ vacuum or inert operation
- TZM alloy high-strength option
- Custom winding patterns

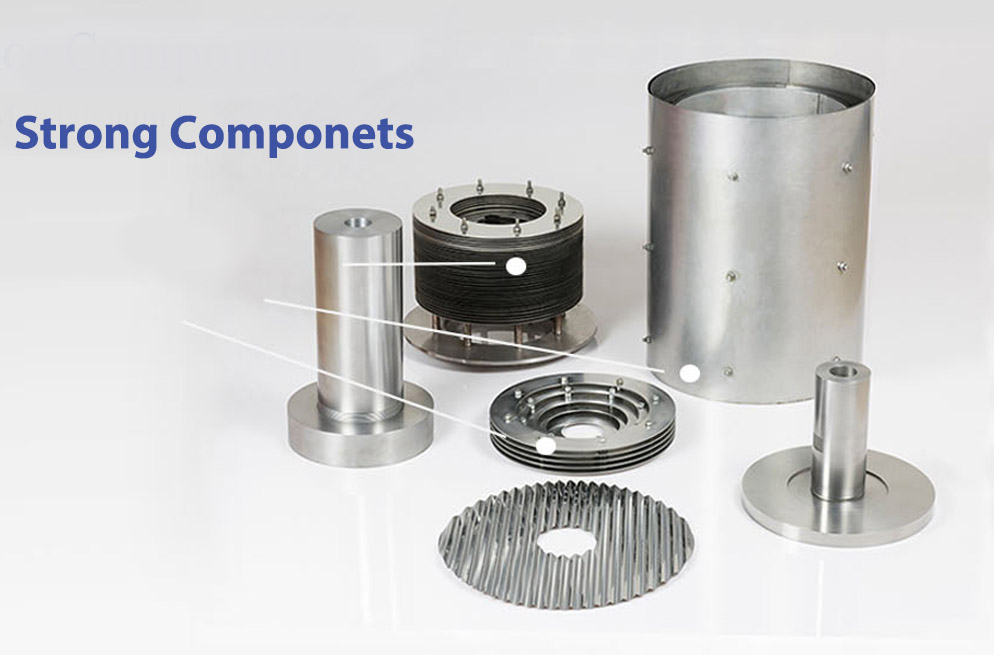

Hot Zone Assemblies
- Complete shield heater rack systems
- Shells mantels and radiation shields
- Pre-assembled for easy replacement
- Exact OEM specification matching
Support Components
- Furnace racks and hearth rails
- Fasteners spacers hangers crowns
- Seed holders and tungsten racks
- Mo-La shelves and custom frames
Technical Specifications Guaranteed
| Property | Pure Mo | TZM Alloy | Mo-La | Tungsten |
| Purity | ≥99.95% | ≥99.95% | ≥99.95% | ≥99.95% |
| Density | ≥10.2 g/cm³ | ≥10.2 g/cm³ | ≥10.1 g/cm³ | ≥19.2 g/cm³ |
| Recommended Use Temp | 1400-1600°C+ | 1700-2200°C+ | 1600-1800°C+ | 2200°C+ |
Mo Price Lock Available
Lock current pricing today and reduce molybdenum price volatility risks.
- Raw material pass-through plus fixed processing fees
- Split delivery from total order
- Monthly shipment scheduling available
- Priority production for long-term partners
Proven Applications
Sapphire Crystal Growth
KY and HEM crucibles seed holders and Mo-La shelves used for 200–300kg crystal production.
Vacuum Brazing
Boats carriers and heating elements used for aluminum heat exchangers and hermetic seals.
DBC Processing
Complete hot zone assemblies used in Direct Bond Copper power module furnaces.
Powder Metallurgy
Racks mesh heaters and fasteners for MIM HIP and sintering furnaces.
Free Parts Matching Service
Upload your existing furnace component drawing photo or sample and receive a free specification comparison.
- Upload drawing photo or part
- 24 hour specification matching
- Competitive quotation with alternatives
Send Elmet or Stanford parts for exact matching and better pricing.
Trusted Worldwide
Serving 150+ furnaces globally with high-performance molybdenum furnace components.
ASTM B386 B387 compliant materials with verified purity and density.
20–30% longer service life compared with standard furnace components.
Flexible MOQ with mixed order capability.
Production Capabilities
- CNC Machining: 3 4 and 5 axis precision machining
- Welding: TIG and laser welding for hot zone assemblies
- Forming: stamping spinning sintering
- Lead Times: stock shapes 2–4 weeks | custom parts 4–6 weeks
- MOQ: flexible for mixed orders and prototypes
