Tungsten Ultra Fine Wire
Details about Tungsten Ultra Fine Wire
Struggling to source ultra-fine tungsten wire with consistent diameter and stable tolerance?
Tired of paying premium prices to Western suppliers for the same technical specifications?
Searching for a reliable factory partner who can provide both bulk orders and custom samples on time?
Yolo is here.

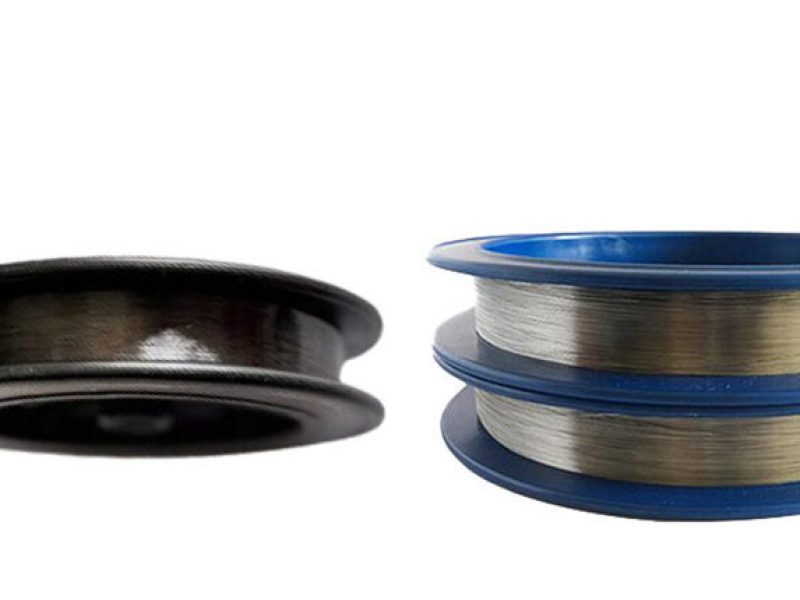

White & Black Surface
We are a China-based manufacturer of fine and ultra-fine tungsten wire with over 10 years of production experience.
Our wires are trusted in electronics, medical, aerospace, lighting, and research applications worldwide.
Key Features
Our tungsten wire combines advanced processing technology with strict quality control, ensuring every spool meets your exact requirements.
Ultra-Fine Diameters: From 0.01 mm (10 microns) up to 1.0 mm, with ±0.002 mm tolerance.
High Purity: ≥99.95% as standard, available for medical and R&D use.
Extreme Heat Resistance: Stable up to 3420°C, with excellent non-sag properties.
Customizable Options: Choose your diameter, finish (black, cleaned, annealed), spool size, and coil length.
Global Export Ready: ISO-certified QC process, shipped to 30+ countries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Diameter Range | 0.01 mm – 1.0 mm |
| Purity | ≥99.95% (standard) / 99.99% (premium) |
| Density | 19.3 g/cm³ |
| Melting Point | 3420 °C |
| Resistivity | 5.62 × 10⁻⁸ Ω·m |
| Tolerances | ±0.002 mm (ultra-fine) |
| Finishes | Black (as-drawn), Cleaned, Annealed |
| Supply Form | Spools, Coils, Straight Wire |
What customer we serve?
Ultrafine tungsten wire is widely used in medical, electronics, industrial, aerospace, and new energy sectors thanks to its high tensile strength, biocompatibility, conductivity, and resistance to high temperature and corrosion.
Medical
Our ultrafine tungsten wire is widely used in medical, electronics, industrial, aerospace, and new energy sectors thanks to its high tensile strength, biocompatibility, conductivity, and resistance to high temperature and corrosion.
Electronics and Industrial Usage

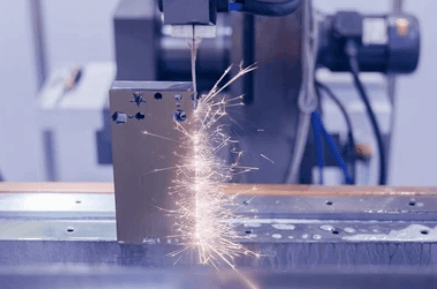

In electronics, tungsten wire is a key material for integrated circuits, vacuum deposition coils, electron-beam emitting devices, and EDM (electrical discharge machining) electrodes for precision cutting and shaping

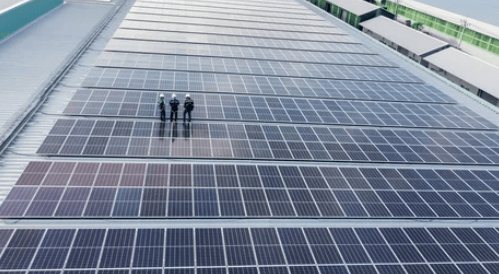

Photovoltaics and Renewable Energy
In the photovoltaic industry, our ultra-fine, high-strength tungsten wires for slicing silicon wafers through “diamond wire” technology, improves efficiency and reduces material loss.
Aerospace and Advanced Engineering
Aerospace applications account for a significant share of ultrafine tungsten wire usage, especially in high-performance electronic components, sensors, and specialty cables exposed to extreme conditions.
Materials Science and Research
Ultrafine tungsten wire is an essential material in experimental physics (such as inertial confinement fusion), scientific imaging (SEM, borescopes), and advanced ionizers and terahertz polarizers
Why Us?
Raw Materials
In China, only less than 1% of manufacturers of tungsten start with raw materials production. Fortunately, we are one of these few manufacturers. The overall particle uniformity of APT raw materials we use is better than that of other companies in the market, which can guarantee the overall quality.
Yolo: Uniform particle size
Some others particle
Flaw Detection
Yolo will have corresponding inspection for each process. 100% flaw detection to the 0.39mm thick wire end to confirm the crack. Under flaw detection, there are Grade A (eg: 2 crack points per 100 meters), B, C Grade. Any level wire below C will be removed, since the more cracks, the more easily the yarn are broken during processing.
Drawing Process
Yolo’s advanced drawing equipment
Many other manufacture’s traditional equipment
A rolling mill introduced from Germany, which it can be deeply process the rod core, which can make the inside struction more uniform. Unlike the early traditional technology, are mainly surface processing.
Surface quality of fine tungsten wire x 4000
Packaging & Delivery
Your order arrives safely, ready to use.
Standard export-safe packaging.

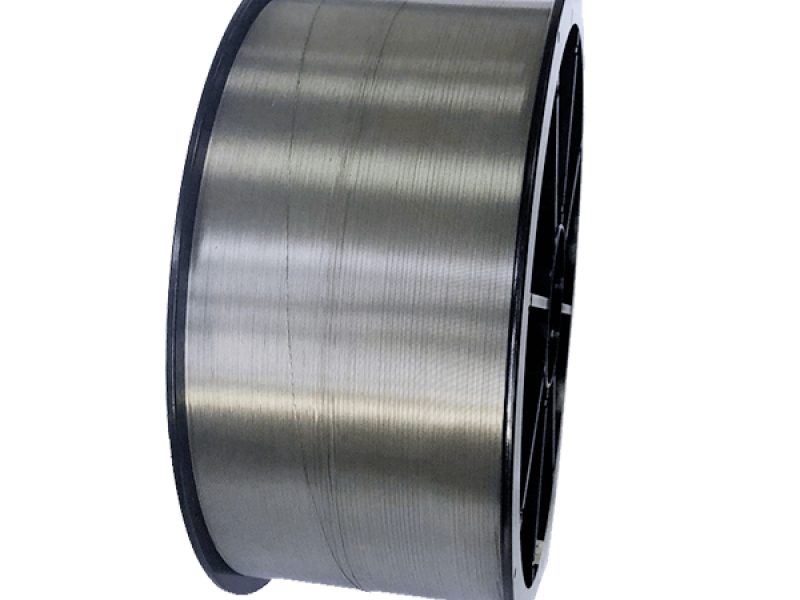

Supplied on plastic or metal spools, or cut-to-length coils.
Express delivery via DHL, UPS, FedEx for small orders.
Air and sea freight for large shipments.
Lead time: 7–15 working days.
Tungsten Wire Price & Ordering
We believe in transparent, competitive pricing. Tungsten wire prices depend on:
Diameter and tolerance requirements.
Order quantity (sample or bulk).
Finish （black or bright)
✅ MOQ: 1 spool – perfect for R&D and testing.
✅ Bulk discounts available for industrial and distributor orders.
✅ Free technical consultation before you order.
