5 Best Suppliers of Tungsten & Molybdenum Spot Welding Electrodes

The top suppliers of tungsten and molybdenum spot welding electrodes include Plansee/Weldstone, AMADA Weld Tech, CenterLine/TUFFALOY, Metal Cutting Corporation, and Yolomet, each offering specialized refractory metal solutions for high-performance resistance welding applications.

As a production engineer at Yolomet with years of experience in resistance welding technologies, I’ve witnessed firsthand how the right tungsten and molybdenum electrodes can transform your spot welding operations, delivering superior performance for challenging materials like copper, brass, and high-strength alloys.

Introduction

In today’s demanding manufacturing environment, standard copper-based electrodes often fall short when welding highly conductive materials or operating under extreme thermal conditions. This is where tungsten (W) and molybdenum (Mo) electrodes, along with their advanced alloys, become essential tools for achieving consistent, high-quality welds.

Why Tungsten and Molybdenum Matter in Spot Welding

From my experience working with various electrode materials, I’ve learned that tungsten and molybdenum offer unmatched advantages in specific applications:

Exceptional thermal stability: Withstand temperatures exceeding 3,000°C without deformation
Superior electrical conductivity: Maintain consistent current flow during extended welding cycles
Extended electrode life: Reduce downtime and replacement costs by 3-5x compared to copper electrodes
Non-sticking properties: Prevent electrode contamination when welding copper, brass, and bronze

Key Properties of W, Mo, and Their Alloys (CuW, TZM, WL20, AgW)

Understanding the material properties is crucial for optimal electrode selection:

Material	Conductivity (% IACS)	Melting Point (°C)	Primary Applications
Pure Tungsten (W)	31%	3,422	Non-ferrous welding, high-temperature applications
Molybdenum (Mo)	34%	2,623	Medium-temperature welding, projection welding
CuW (80/20)	45-55%	1,083-3,422	Copper/brass spot welding
TZM Molybdenum	35%	2,623	Enhanced strength applications
WL20 (W+2%La2O3)	32%	3,422	Non-sagging applications
Silver Tungsten (AgW)	55-65%	962-3,422	High-current switching applications

Selection Criteria for Spot Welding Electrodes

When choosing the right supplier and material, I consider these critical factors:

Material compatibility with workpiece metals
Thermal conductivity requirements for heat dissipation
Electrode geometry and custom machining capabilities
RWMA class compliance and industry standards
Lead times and global distribution networks

Top 5 Global Suppliers

1. Plansee / Weldstone (Austria / Global)

Plansee has established itself as a premier refractory metals specialist with over 100 years of experience.

Materials Offered – W, Mo, TZM, CuW (Tucomet®), heavy W alloys

Pure tungsten electrodes with >99.95% purity
TZM molybdenum for enhanced strength applications
Tucomet® CuW composites (70/30, 75/25, 80/20 compositions)
Heavy tungsten alloys (W-Ni-Fe, W-Ni-Cu) for specialized applications

Applications – Spot, projection, seam welding of copper, brass, and non-ferrous metals. Plansee’s electrodes excel in:

Automotive battery tab welding
Electrical component manufacturing
Aerospace copper alloy welding
High-frequency welding applications

Notable Advantage – Strong R&D in refractory metals

Their Austrian research facilities continuously develop new alloy compositions and manufacturing processes, resulting in electrodes with superior microstructure and performance consistency.

2. AMADA Weld Tech (Japan / USA)

AMADA Weld Tech brings Japanese precision engineering to the resistance welding market.

Materials Offered – RWMA Class 11 (CuW), Class 13 (W), Mo, TZM, WL20

RWMA Class 11 copper-tungsten electrodes (standard compositions)
Class 13 pure tungsten for non-ferrous applications
Precision-machined molybdenum electrodes
WL20 lanthanum-doped tungsten for enhanced performance

Applications – Micro-resistance welding, electronics, precision components. AMADA specializes in:

Electronics industry micro-welding
Medical device manufacturing
Precision instrument welding
Fine pitch component assembly

Notable Advantage – Full electrode catalog with standard and custom tips Their comprehensive catalog includes over 200 standard electrode configurations, with custom design services for specialized applications requiring tight tolerances.

3. CenterLine / TUFFALOY (North America)

CenterLine has built a strong reputation in North American automotive and industrial markets.

Materials Offered – RWMA Class 11 CuW (75W/25Cu, 80W/20Cu), tungsten, molybdenum

Standardized RWMA compositions for consistent performance
Pure tungsten electrodes in various geometries
Molybdenum caps and inserts for projection welding
Custom CuW ratios based on application requirements

Applications – Automotive spot and projection welding, fastener welding. Primary applications include:

Automotive body-in-white assembly
Fastener and nut welding systems
Heavy-duty projection welding
Industrial equipment manufacturing

Notable Advantage – Wide distribution and standardized RWMA classes. Their extensive North American distribution network ensures rapid delivery and consistent RWMA-compliant quality across all electrode types.

4. Metal Cutting Corporation (USA)

Metal Cutting Corporation combines decades of refractory metal expertise with advanced machining capabilities.

Materials Offered – Tungsten, Molybdenum, CuW, AgW, heavy W alloys

Pure tungsten in all standard and custom geometries
High-purity molybdenum for critical applications
Copper-tungsten composites with precise composition control
Silver-tungsten electrodes for high-current applications
Custom heavy tungsten alloys for specialized requirements

Applications – Resistance welding electrodes, precision welding, EDM components. Their expertise spans:

Aerospace resistance welding
Precision electronics manufacturing
EDM electrode applications
Custom refractory metal components

Notable Advantage – Expertise in refractory metal machining and custom design. Their in-house machining capabilities enable complex electrode geometries and rapid prototyping for unique applications.

5. Yolomet (China / Global)

At Yolomet, we’ve positioned ourselves as the comprehensive solution provider for all refractory metal electrode needs.

Materials Offered – Full range: W, Mo, TZM, WL20, CuW, AgW, back-cast electrodes

Complete tungsten product line from pure W to advanced alloys
Molybdenum and TZM in all standard configurations
Copper-tungsten composites with precise infiltration technology
Silver-tungsten electrodes for switching applications
Proprietary NDB back-cast electrodes for extended life

Applications – Spot, projection, seam, and high-temperature welding

Our electrodes serve diverse applications:

Automotive resistance welding systems
Electronics and semiconductor manufacturing
Aerospace component welding
Heavy industrial welding operations

Notable Advantage

Only supplier covering the entire refractory spectrum with NDB back-cast technology and their own raw materials in-house, but with a very good factory direct price.

Our unique position allows customers to source all electrode types from a single supplier, with our exclusive NDB back-casting process extending electrode life by up to 400% in demanding applications.

Comparison of Supplier Offerings

Material Coverage – Which supplier provides which alloys (W, Mo, CuW, TZM, etc.)

Supplier	W	Mo	CuW	TZM	WL20	AgW	Custom Alloys
Plansee	✓	✓	✓	✓	Limited	Limited	✓
AMADA	✓	✓	✓	✓	✓	Limited	✓
CenterLine	✓	✓	✓	Limited	Limited	Limited	Limited
Metal Cutting	✓	✓	✓	Limited	Limited	✓	✓
Yolomet	✓	✓	✓	✓	✓	✓	✓

Industry Applications – Automotive, aerospace, electronics, industrial equipment

Each supplier has developed specific expertise in key industries:

Automotive: CenterLine and Yolomet lead in high-volume production solutions
Aerospace: Yolomet, Plansee and Metal Cutting excel in precision applications
Electronics: AMADA, Yolomet dominates micro-welding applications
Industrial Equipment: All suppliers serve this broad market segment

Choosing the Right Supplier Based on Needs

Consider these factors when selecting your supplier:

Material requirements: Choose suppliers offering your specific alloy needs
Volume requirements: High-volume users benefit from automotive-focused suppliers
Technical support: Complex applications require suppliers with strong R&D capabilities
Geographic location: Consider shipping costs and lead times
Custom capabilities: Unique applications require suppliers with custom design services

Why Yolomet Stands Out Among Global Suppliers

Comprehensive Material Range

Unlike competitors who specialize in specific materials, Yolomet offers the complete spectrum of refractory metal electrodes. This allows our customers to:

Consolidate their supplier base
Ensure consistent quality across all electrode types
Benefit from volume pricing on mixed orders
Receive integrated technical support

Custom Engineering for Specific Applications

Our engineering team works closely with customers to develop optimized electrode solutions:

Material selection optimization based on welding parameters
Geometry design for specific equipment configurations
Alloy composition tuning for unique application requirements
Performance testing and validation support

Competitive Lead Times and Pricing

Through our global manufacturing network and optimized supply chain, we deliver:

Custom configurations: 4-6 weeks including prototyping
Competitive pricing: 20-30% cost savings compared to premium suppliers
Flexible minimum orders: Supporting both prototyping and production volumes

Conclusion & Next Steps

Summary of Top Global Suppliers

The five suppliers reviewed—Plansee/Weldstone, AMADA Weld Tech, CenterLine/TUFFALOY, Metal Cutting Corporation, and Yolomet—each bring unique strengths to the tungsten and molybdenum electrode market. While established suppliers like Plansee and AMADA offer proven quality and specialized expertise, Yolomet provides the most comprehensive solution with competitive pricing and advanced technologies like our NDB back-cast electrodes.

Contact Yolomet for a Quote

Ready to experience the Yolomet advantage? Our technical team is standing by to discuss your specific electrode requirements and provide customized solutions that optimize your welding operations. Contact us today for samples, technical consultation, or a detailed quotation for your tungsten and molybdenum electrode needs.

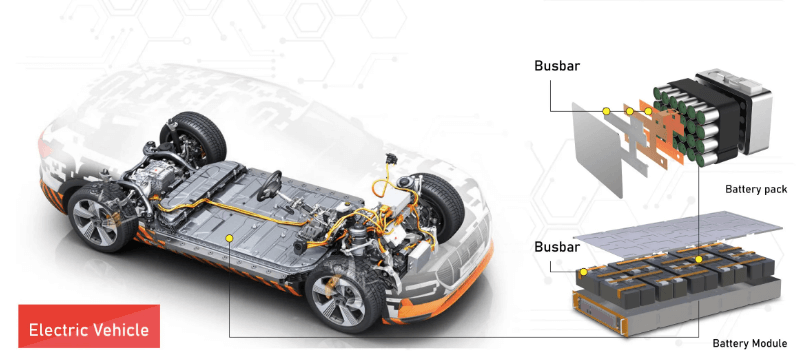

Whether you’re welding copper bus bars in electric vehicle production, joining precision components in aerospace applications, or tackling challenging non-ferrous materials, Yolomet has the expertise and product range to deliver superior results.

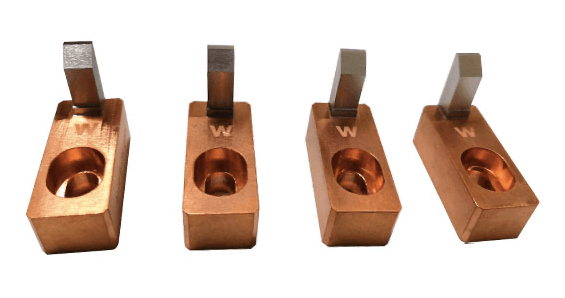

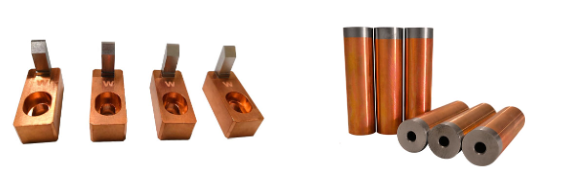

Yolo NDB Electrode ,Your Resistance Welding Solutions

At Yolo, we are dedicated to helping manufacturers achieve the highest standards in battery tab welding. Our NDB electrode solutions feature:

Top NDB Resistance Welding Electrode-Factory Direct Supply

Get premium NDB electrodes with tungsten, molybdenum, WL10, and TZM alloy tips—directly from our factory in China. We offer OEM/ODM support, custom designs, and competitive pricing to meet your production needs.
