Precision-Ground Tungsten Electrodes for Orbital Welding
Trusted by Korea’s top semiconductor UHP piping contractors

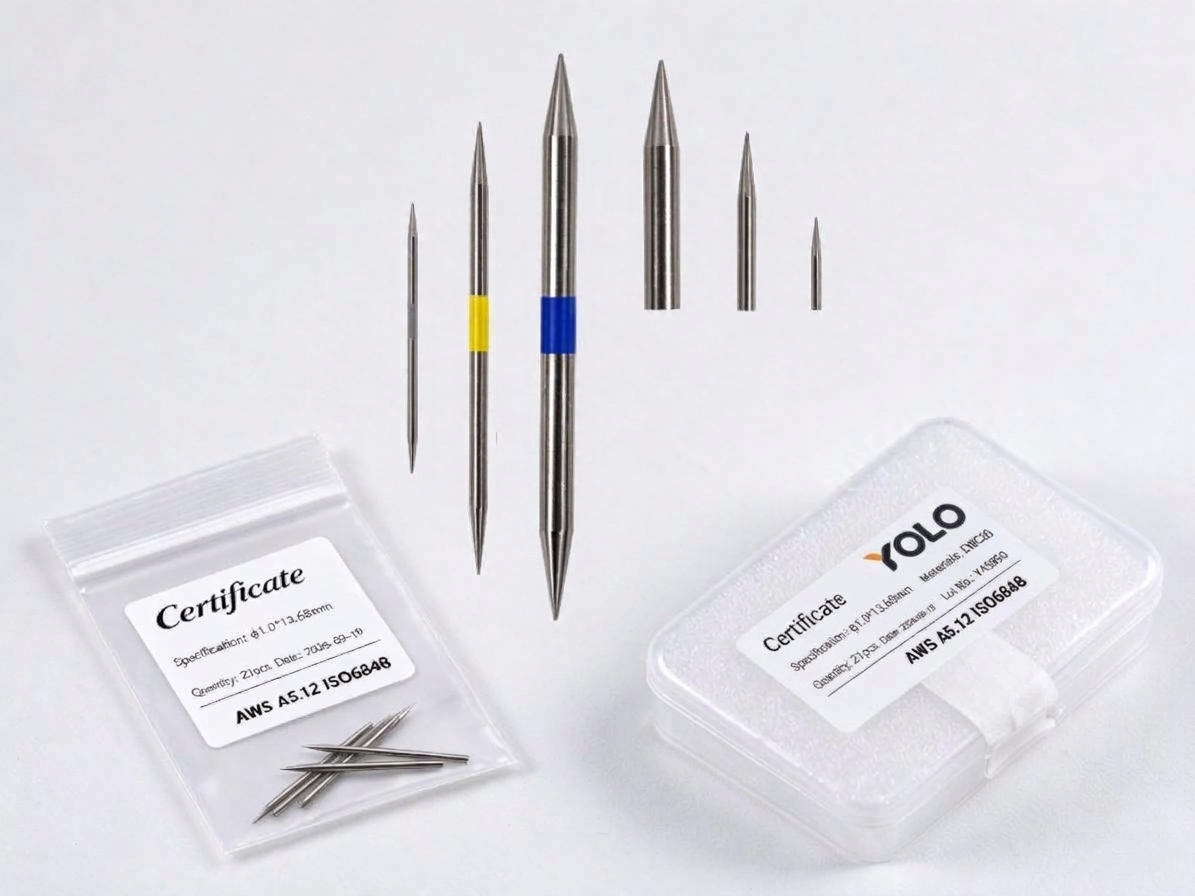

Yolo electrodes arrive CNC diamond-ground, microscope-inspected and sealed. Open the pack, load the weld head, weld.

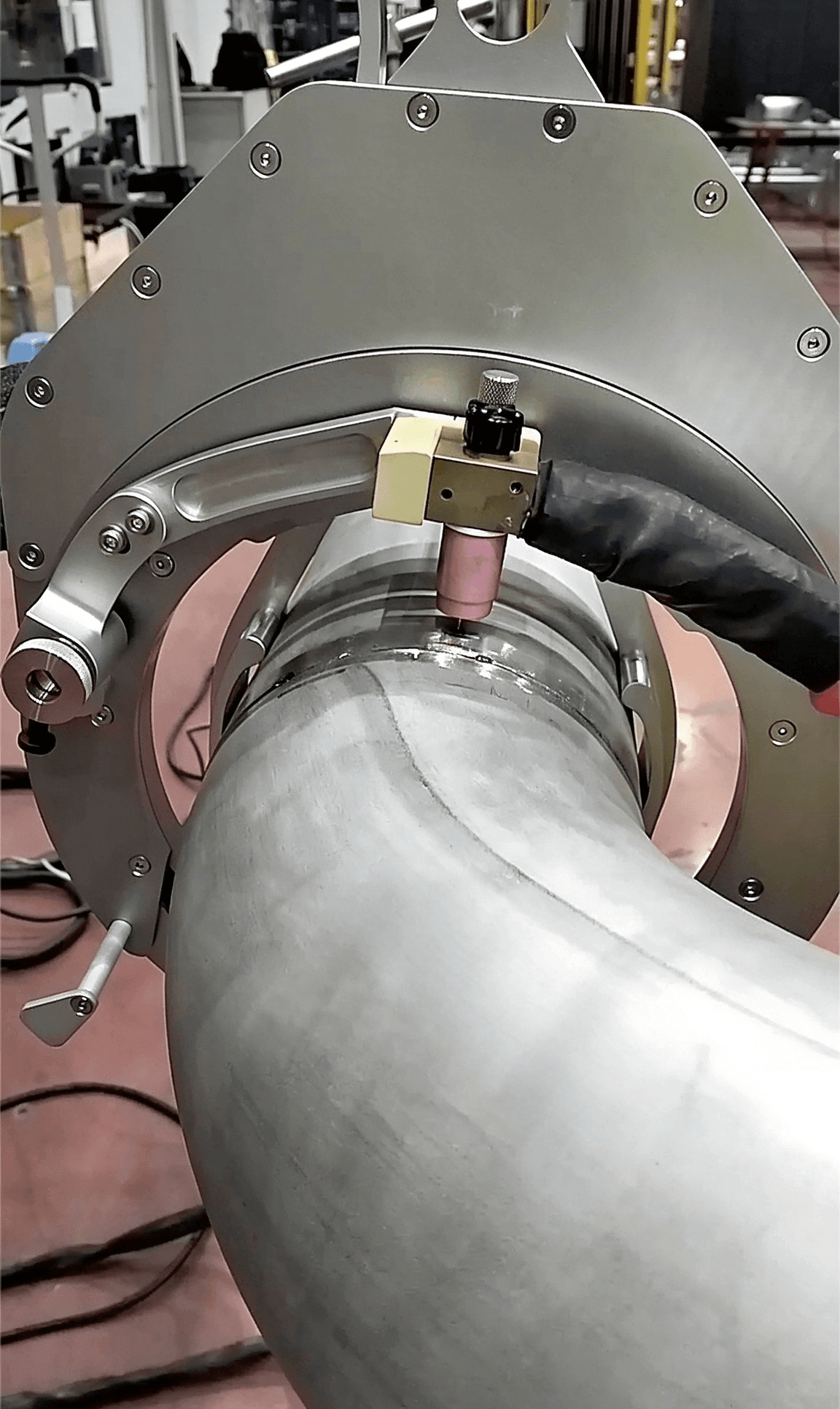

- Fit AMI (Arc Machines), Orbitalum, Swagelok, Polysoude, Magnatech, AXXAIR, Liburdi Dimetrics and other orbital heads
- 2% ceriated, 1.5% and 2% lanthanated, to ANSI/AWS A5.12
- Custom length, angle and tip flat to your drawing
- ±0.002″length and tip flat
- Ra < 0.4 µmaxial grind
- 100%microscope-inspected
Made for tube systems where every weld is inspected
Four markets, each with its own electrode choices.

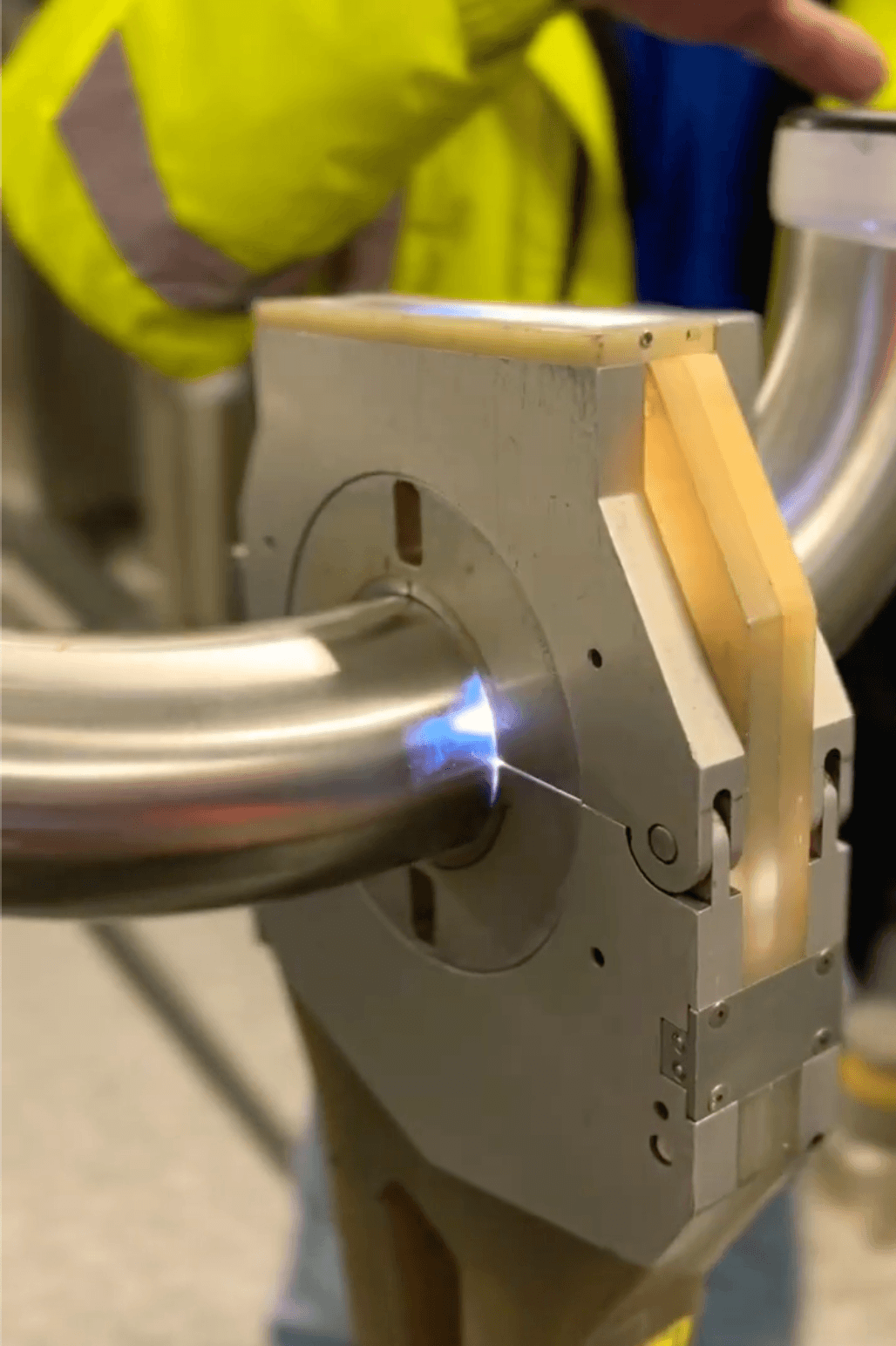

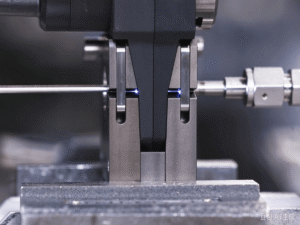

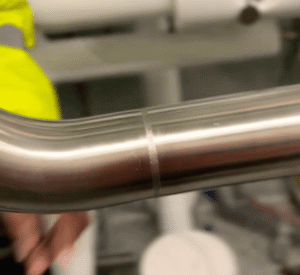

Semiconductor and UHP gas and chemical lines
Thin-wall, small-OD tube where one bad weld contaminates the system: start with .040″ or 1/16″ 2% ceriated, lot-certified.

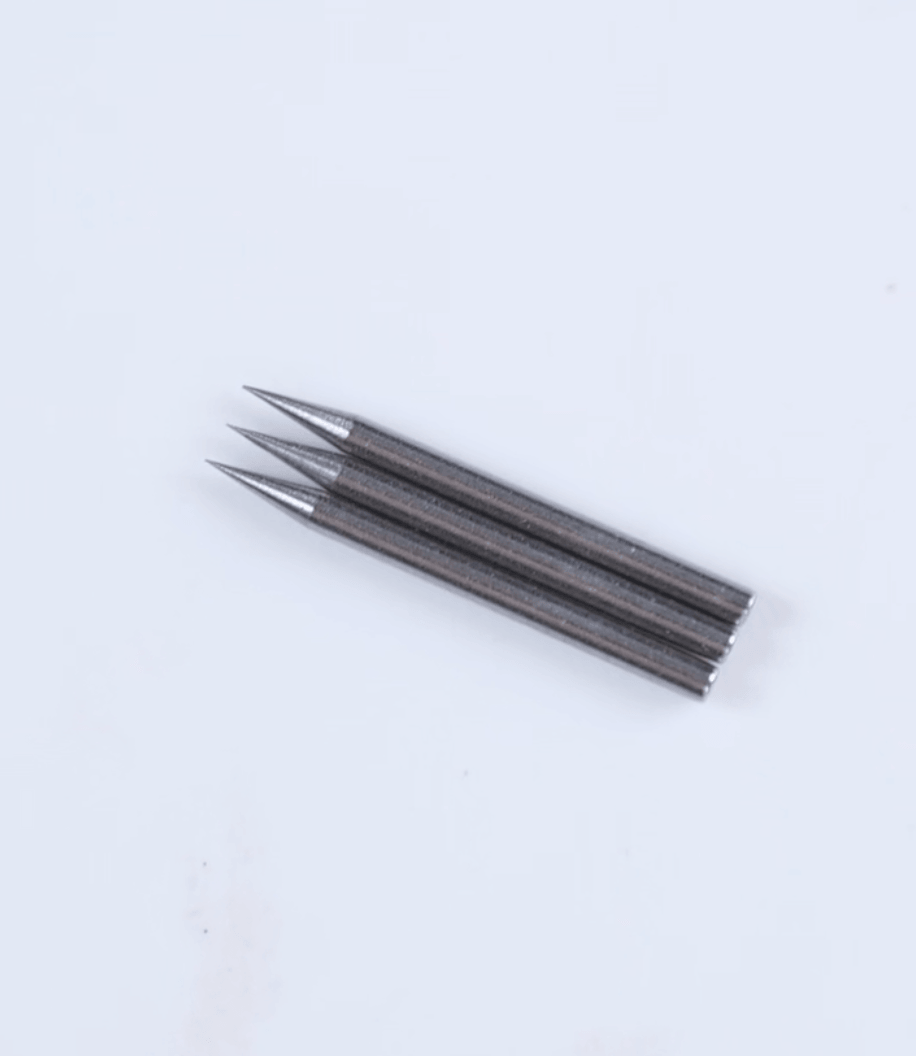

Pharmaceutical, biotech and medical-device sanitary tube
Tube that must look the same weld after weld: 2% ceriated by default, 2% lanthanated for pulsed current or frequent restarts.

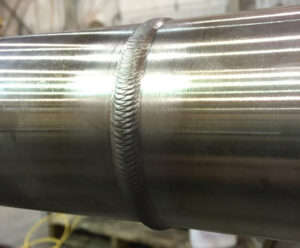

Chemical, petrochemical and energy process piping
Larger-diameter stainless pipe and fittings: 3/32″ or 1/8″ electrodes, 2% ceriated for thin wall and lanthanated for higher current or pulsed welding.
Aerospace tube and fluid lines
Fuel and hydraulic lines that need traceable consumables: lot number and certificate of conformance, with custom length, angle and flat to your drawing.
Also used in
Nuclear and high-consequence pipingPower generation: boiler and steam pipingFood, beverage and dairy pipingTube millsFitting and valve manufacturersOil and gas, LNG and hydrogenAutomotiveShipbuildingSpecialty gas systemsHigh-volume orbital projectsAutomated TIGPlasma welding
Find your electrode
Three choices: size, tip, grade. Give us the numbers your weld head needs, and we grind to match.
1 · Diameter and length
Diameter
- .040″ (1.0 mm): thin-wall tube, low current
- 1/16″ (1.6 mm): small-bore tube and pipe
- 3/32″ (2.4 mm): mid-size tube and pipe
- 1/8″ (3.2 mm): heavier wall, higher current
- .020″, 5/32″, 3/16″, 1/4″: on request
Length
- Stock rod: 7″ (178 mm)
- Orbital electrodes cut to your weld head, e.g. 0.295″, 0.539″, 0.641″–0.734″ (7.5–18.6 mm)
- Single-ended: ready to use
- Double-ended: you cut to length
- Length tolerance ±0.002″ (±0.05 mm)

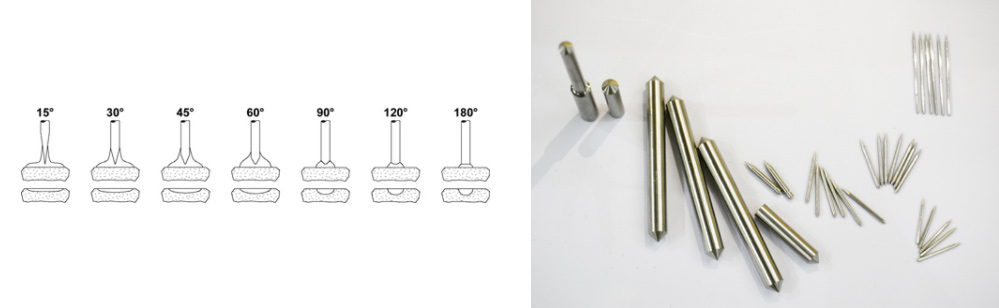

2 · Tip angle and flat
10°–25°
Low current
25°–45°
Larger diameter, high current
Tip flat
Set per weld head and procedure; ±0.002″ (±0.05 mm). Angle ±1°
3 · Grade
2% ceriated
EWCe-2 / WC20 · gray
1.5% lanthanated
EWLa-1.5 / WL15 · gold
2% lanthanated
EWLa-2 / WL20 · blue
Besides Grey EWC20, Gold WL15, Blue WL20, Yolo also supply: pure (EWP / WP, green) and zirconiated (EWZr-1 / WZ3, WZ8). The last two are AC grades, not typical for DC orbital welding. Check your WPS before changing electrode type.
Why Yolo
Proof, cleanliness and geometry first. Then where the tungsten comes from, then price.
Traceable and certified

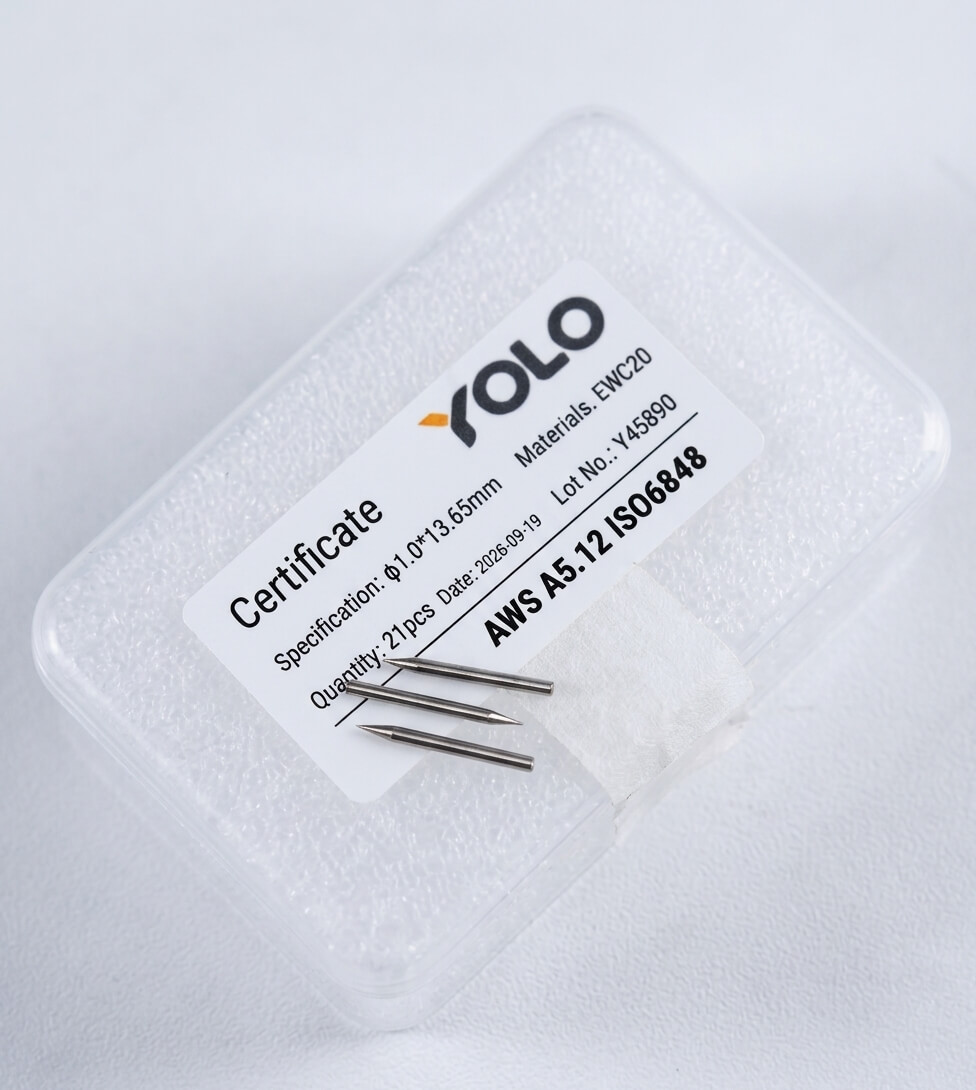

- Certificate of conformance with composition and lot number

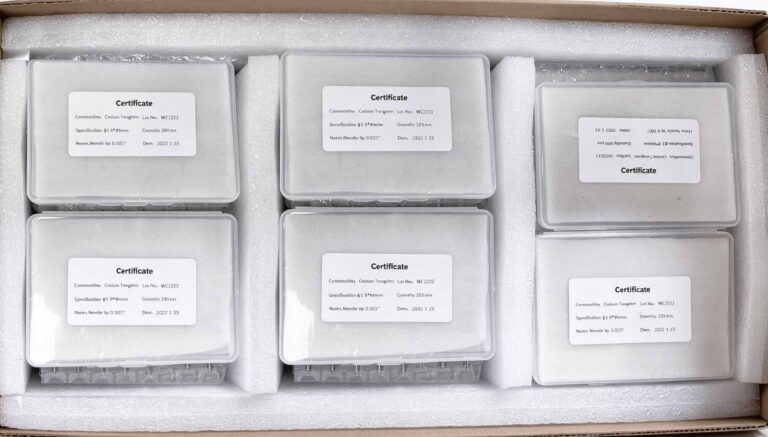

- Lot number on the pack matches your weld data record (WDR); UHP systems need lot certificates from mill to installation
- ANSI/AWS A5.12, also published by ASME as SFA-5.12, with ISO 6848 designations

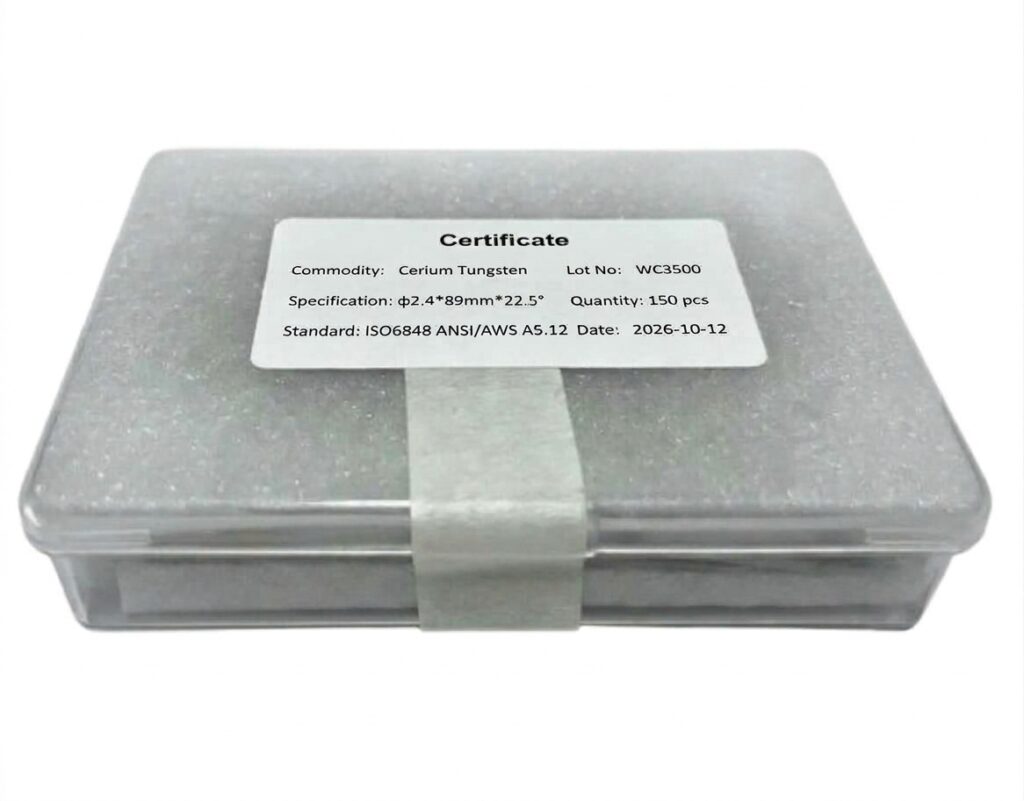

Clean, sealed packaging

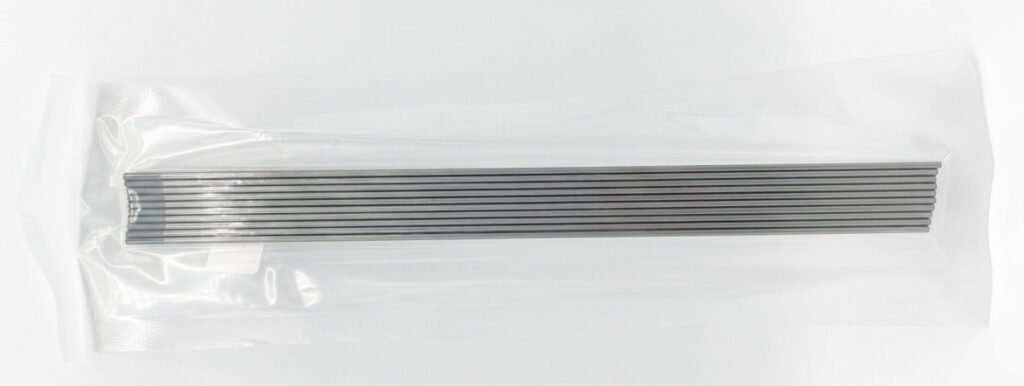

- Sealed against contamination: vacuum bag or rigid plastic box
- No grinding residue or oil
- Wheels grind only tungsten, so no steel cross-contamination
Geometry that repeats
- Axial grinding, precise tip flats, length and flat ±0.002″
- Ground to your weld head maker’s dimension sheet
- CNC grinding, polishing and microscope inspection of every electrode, from one supplier

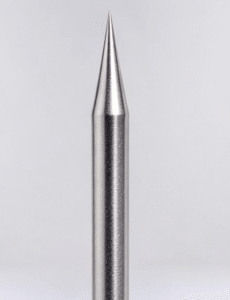

Rough axial grind and precise axial grind

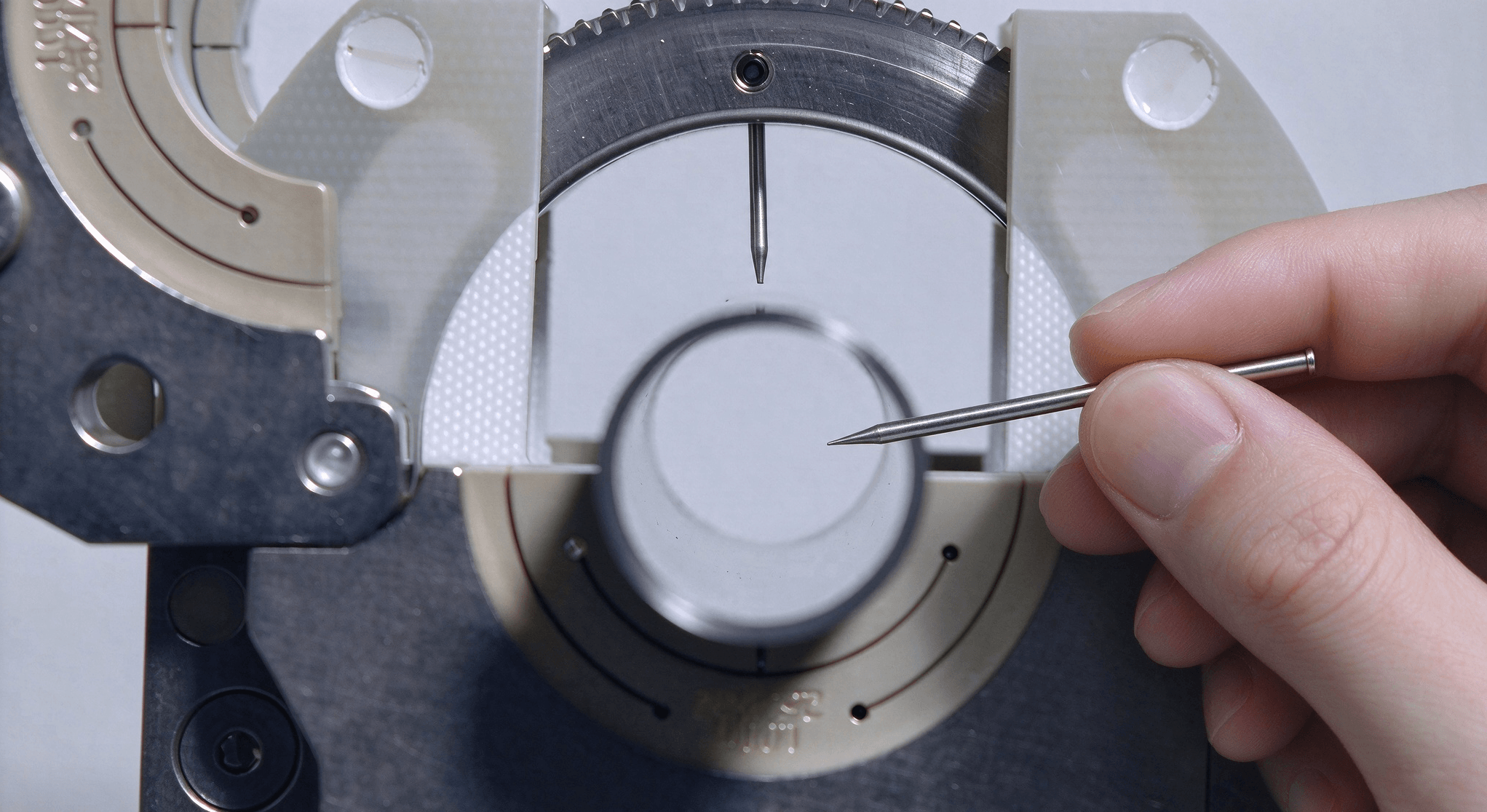

Microscope inspection
Controlled from the source
- Luoyang, Henan, is home to Luanchuan, one of China’s major molybdenum-tungsten resource bases
- Raw material price and quality control start at the 2% Ceriated Tungsten or Lanthanated Tungsten
- Purity and density benchmarked to German-made electrode material
A price that works at volume
- Buying tungsten at the source keeps our material cost low
- Volume buyers: up to 70% below equipment-manufacturer prices
- Critical projects with strict audits: points 1–4 come first
“`
Fits your weld head, ground to your drawing
AMI (Arc Machines)OrbitalumSwagelokOtto ArcMKAXXAIRPolysoudeMagnatechLiburdi Dimetrics
- Trusted by Korea’s Top semiconductor UHP piping contractors
- Other length, taper angle or tip flat? We grind to your drawing
- Minimum order 10pcs · Lead time 15 days · China Factory Direct
For a quote, send us
- Weld head make and model
- Your current electrode part number or drawing
- Diameter, length, angle, tip flat and grade
- Quantity per year
