Premium Tungsten Stranded Wire & Evaporator Coils for Vacuum Coating
Engineered for extreme high-temperature stability, zero contamination, and maximum evaporation efficiency.
Yolomet is a premier source manufacturer of high-performance tungsten stranded wire and custom heater coils. Designed specifically for vacuum metallizing, semiconductor manufacturing, and optical coating industries.
Hot Sale Stranded Wire Specifications
In-Stock & Fast Customization for Vacuum Evaporation Systems
| Strands x Wire Dia. | Typical Configuration | Primary Application | Lead Time |
|---|---|---|---|
| 3 x 0.8 mm | 3-ply twisted, standard pitch | Aluminum evaporation for plastics | 10-15 working day |
| 3 x 1.0 mm | 3-ply twisted, heavy duty | Automotive reflectors | 10-15 working day |
| 4 x 0.5 mm | 3-ply twisted, fine wire | Precision optical coatings | 10-15 working day |
| 4 x 0.8 mm | 4-ply twisted | Large-scale thermal evaporation | 10-15 working day |
*Available in Pure Tungsten (W ≥ 99.95%) or Potassium-doped Non-sag Tungsten (WAL).
Specifications Available
Available in 2-strand, 3-strand, and 4-strand constructions, with custom strand diameter, twist pitch, overall length, and surface finish to match your equipment requirements.
Whether you need standard commercial sizes or fully customized specifications, our engineering team can provide fast technical support and stable batch production.
| Item | Specification |
|---|---|
| Material | Pure Tungsten / W1 / W2 |

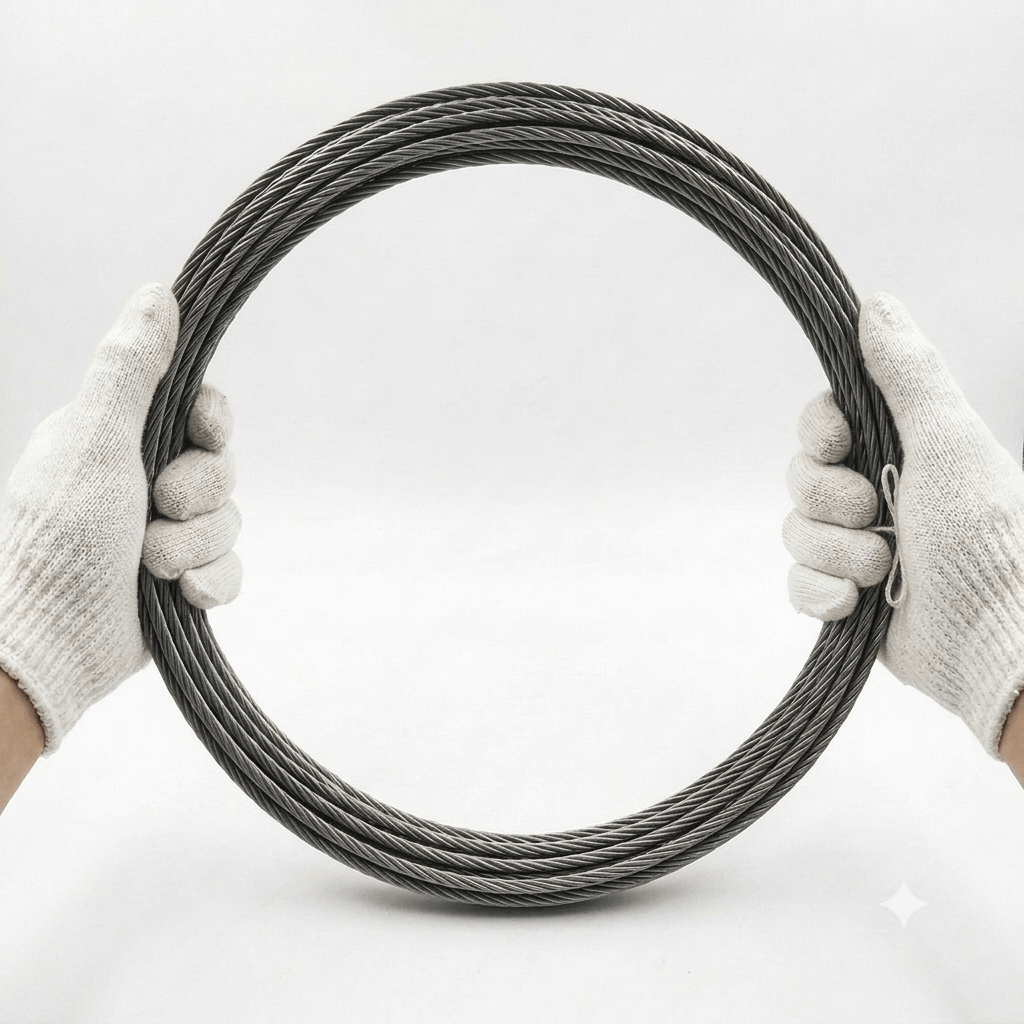

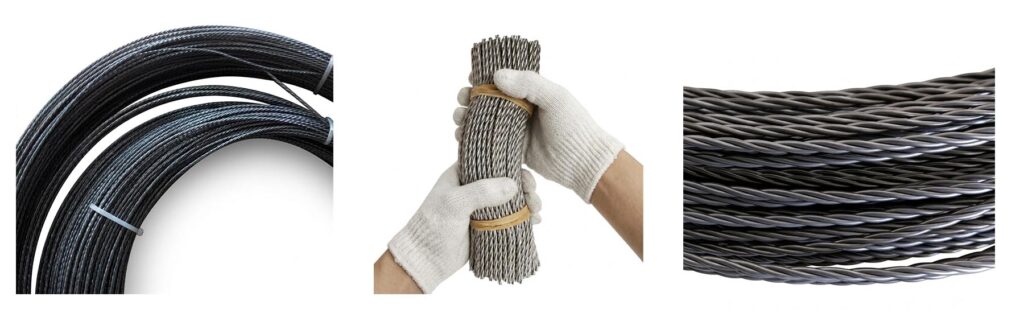

| Product Name | Tungsten Twisted Wire / Tungsten Stranded Wire |
| Structure | Twisted / Stranded / Multi-Strand |
| Strand Diameter | 0.76 mm, 0.80 mm, 0.81 mm, 1.00 mm (Custom Available) |
| Strand Count | 2 / 3 / 4 Strands |
| Length | Customized |
| Surface Finish | Bright / Cleaned / Black |
| Application | Vacuum Coating, PVD Coating, Thermal Evaporation, Heating Elements, Vacuum Metallization |
Where Our Tungsten Wire Excels
Tungsten twisted wire is mainly used in industrial environments that require high temperature resistance and stable heating performance. Common application scenarios include vacuum coating, PVD coating, thermal evaporation, heater elements, and vacuum device components.
It is commonly used in tungsten wire baskets, evaporation filaments, and resistance-heated source assemblies for thin-film coating processes.
Typical Applications
- Optical coating for lenses, filters, and glass substrates.
- Vacuum metallizing for decorative and functional thin films.
- Semiconductor and electronic thin-film deposition.
- Laboratory and pilot-scale thermal evaporation equipment.
Why It Works
Tungsten offers a high melting point and stable performance under intense heat, making it suitable for resistance heating in vacuum environments.
Its structure helps support efficient and controlled evaporation of coating materials, improving source stability and service life.
Why Choose Yolo As Your Trust Supplier?
Strong Sourcing Advantages
Located in Luoyang, China’s key tungsten and molybdenum industrial base, we combine rich local resources with 20+ years of processing experience. This ensures you receive a stable supply, competitive pricing, and reliable quality from the very start of your order.
Yolo’s Powder
Other factory’s Powder
100% Eddy Current Detection
We protect your production quality by testing every rod—including wire ends as thin as 0.39 mm. All sub-Grade C materials are strictly removed, preventing cracks from becoming a problem in your downstream operations and drastically reducing costly wire breakage.
100% Eddy Current Testing on wires down to even 0.39mm.
Yolo’s advanced drawing equipment
Many other manufacture’s traditional equipment
German Rolling Mill Technology
Our advanced process deeply refines the rod core, creating a more uniform internal structure rather than just surface treatment. This translates into better consistency, superior drawability, and stronger performance for your most demanding industrial applications.
Transparent Process
1. Alkaline washing
1. Alkaline washing
2. Drying
(Naturally dry moisture on the tungsten wire)
3. Twist
(Twisting single wire into a stranded wire after removing rejected materials)
6. Polishing
(Removing oxides and smoothing by electrolytic way)
5. Forming
(Shape it into a spiral, a basket or a loop shape)
4. Cutting
(Cutting into a requested length)
7. Neutralization
(Neutralizes alkaline residues after weak acid and electrolytic cleaning)
8. High temperature drying
(Removing chemical moisture)
9. QC & Packaging
(Full quality inspection on the materials, size) and packaging
Frequently Asked Questions
What is stranded tungsten wire used for?
It is primarily used as heating elements (evaporator coils) in vacuum thermal evaporation. The stranded structure creates capillary forces to securely hold molten evaporant like aluminum, preventing dripping.
Pure vs. Doped (WAL) tungsten wire?
Pure tungsten becomes brittle after heating cycles. Potassium-doped (WAL) tungsten maintains a stable, interlocking microstructure at extreme temperatures, providing “non-sag” properties and heavily extending coil life.
Can I customize the twist pitch and strands?
Yes. We customize wire from 1-ply to 10+ strands and adjust the twist pitch to match the exact electrical resistance required by your specific vacuum chamber.
Do you manufacture ready-to-use heater coils?
Yes. Besides spooled wire, we manufacture pre-formed tungsten evaporator coils bent exactly to your technical drawings.
Optimize Your Supply Chain Today
Send us your technical drawings or required parameters (e.g., 3 x 0.8mm). Our global sales engineer will provide a detailed quotation within 24 hours.
